XD-ACS30

Core 12V – 30A Connection System for One Amplifier

Everything you need to make secure, high-integrity connections to a single amplifier with up to a 30A fuse rating. Our compact Maxi® Master Fuse Block is easy to install and allows you to accurately fuse your amplifier. A beefy self-tapping ground screw is also included to help you achieve a solid ground. To complete your installation, you will also find an 18 ft. (5.5 m), 2-Channel Audio Interconnect Cable and a generous length of speaker cable in this system.

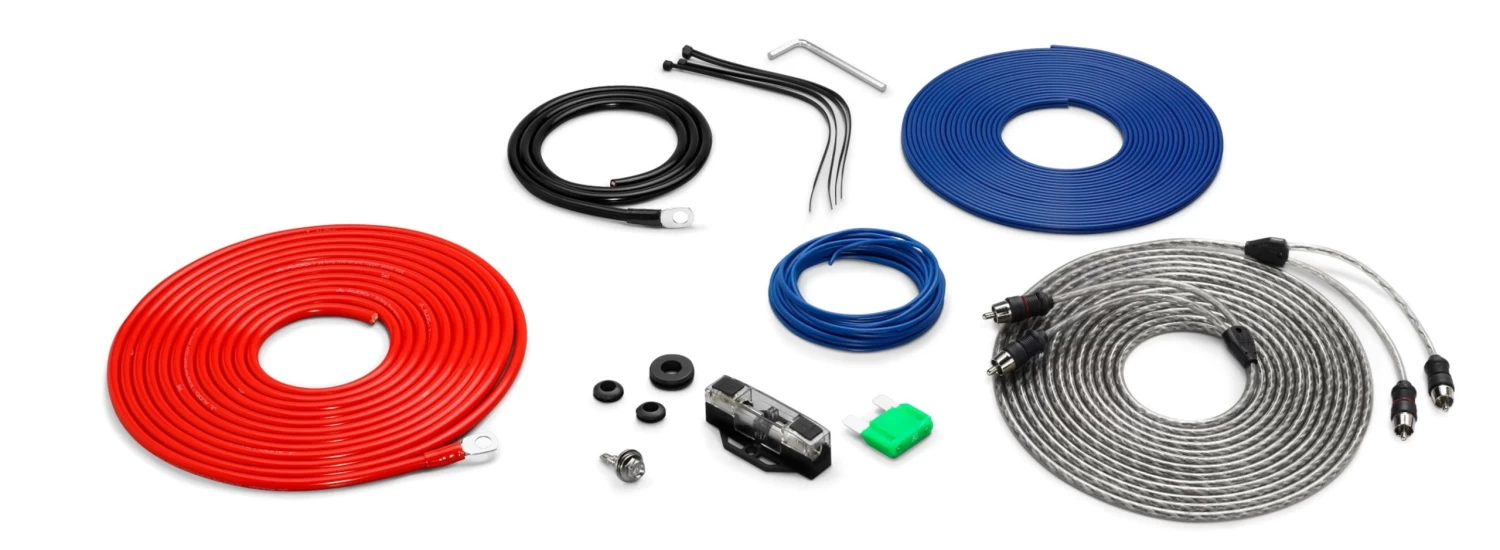

What’s in the kit?

• XD-MFB-MAXI Fuse Holder with Genuine 30A Maxi® Fuse
• 17 ft (5.18 m) Red 30A Core Power Wire, terminated with ring
• 3 ft (0.91 m) Black 30A Core Ground Wire, terminated with ring
• 17 ft (5.18 m) Blue Remote Turn-On Lead Wire
• 25 ft (7.62 m) Blue Speaker Cable
• XD-CLRAIC2-18 2-channel, 18 ft. (5.5 m) Audio Interconnect Cable
• Self-Tapping Ground Screw
• Rubber Firewall Grommet
• Nylon Wire Ties
• Hex Wrench for Fuse Holder

This kit is appropriate for single amplifiers with fuse ratings from 15A to 30A. Depending on the specific fuse rating of your amplifier, you may need to purchase an appropriate Maxi® fuse separately.

OmniSert™ (Patent Pending)

Summary:
This unique block terminal design results in better mechanical and electrical contact between the wire and the block.

Detailed Information:
Conventional captured wire block designs use a narrow screw that only contacts the center of the inserted wire. When tightened, the screw digs a depression into the wire and only applies full pressure in a relatively small contact patch. Additionally, when smaller wires are inserted into the block, the screw does a poor job of gripping the smaller wire, increasing the possibility of an unreliable connection.

JL Audio’s patent-pending OmniSert™ technology uses a large diameter screw with a domed contact area that precisely matches the contour of the wire bore. This oversized domed surface evenly applies pressure to the wire over a larger contact area in the body of the block. The design also does an excellent job of capturing smaller wires in the block, eliminating the need for ferrules or sleeves to achieve proper mechanical integrity.



USA Limited Warranty:  Two (2) years from the original date of purchaseWarranty Details
